The DVP-EC5 Series fulfills the market demand for advanced PLCs with a user-friendly programming interface, faster execution of high-speed pulse input/output, and expanded program capacity. The upgrade from the previous EC-3 aligns with demands for a versatile programmable logic controller.
Enhanced program capacity supports up to 16k steps
Supports high-speed pulse output of 4 points at 50 kHz
Supports high-speed pulse input of 2 points at 50 kHz
Supports external interrupt up to 8 points
Packing / machinery, landscape fountains, building automation
| Item | DVP-EC3-8K | DVP-EC5 |
| Programming Language | IL, LD, SFC | IL, LD, SFC |
| Program Capacity | 8k steps | 16k steps |
| Execution Speed | LD: 0.98 µs MOV: 3 µs | LD: 0.98 µs MOV: 3 µs |
| High-Speed Pulse Input | 2 x 10 kHz 4 points external interrupts | 2 x 50 kHz 8 points external interrupts |
| High-Speed Pulse Output | 2 x 10 kHz | 4 x 50 kHz |
| Serial Ports | RS232 x1 (M/S) RS485x1 (M/S) | RS232 x1 (M/S) RS485 x1 (M/S) |
| Latched | Flash ROM | Flash ROM |
| Extension Modules | No | No |
| RTC | EC3 stops keeping track of the time when the power is off | EC5 stops keeping track of the time when the power is off |

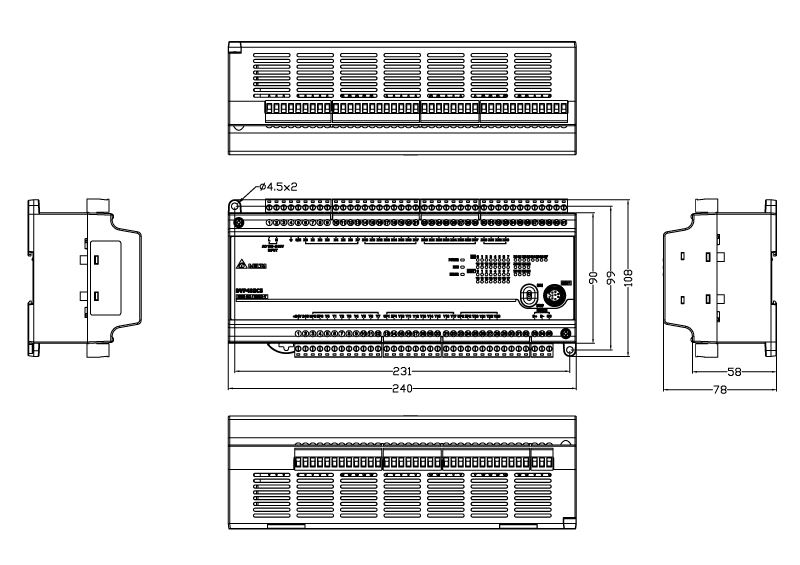

※ You can search for more files in the download centerDimension
48 I/O Basic Type PLC
DVP48EC500T
Unit: mm
